NUX DM-8 Digital Drum Kit

DM-8 Digital Drum Kit

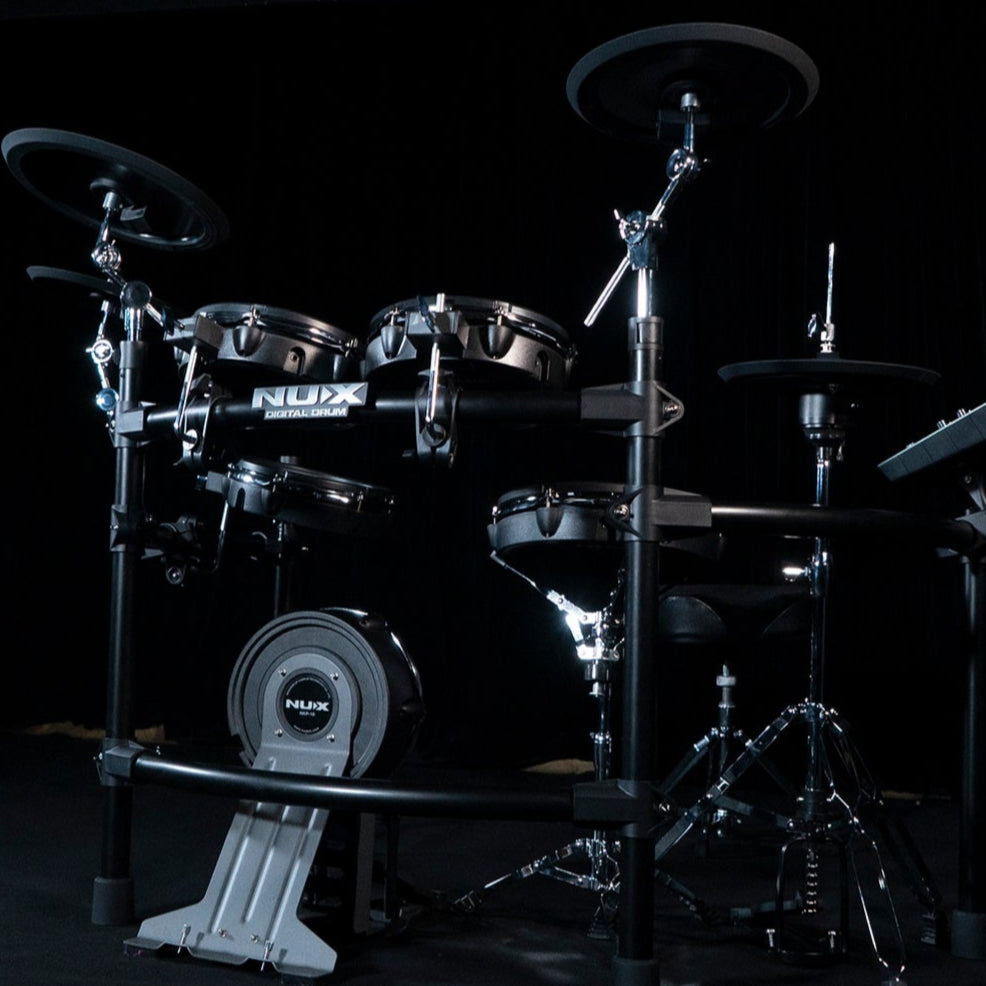

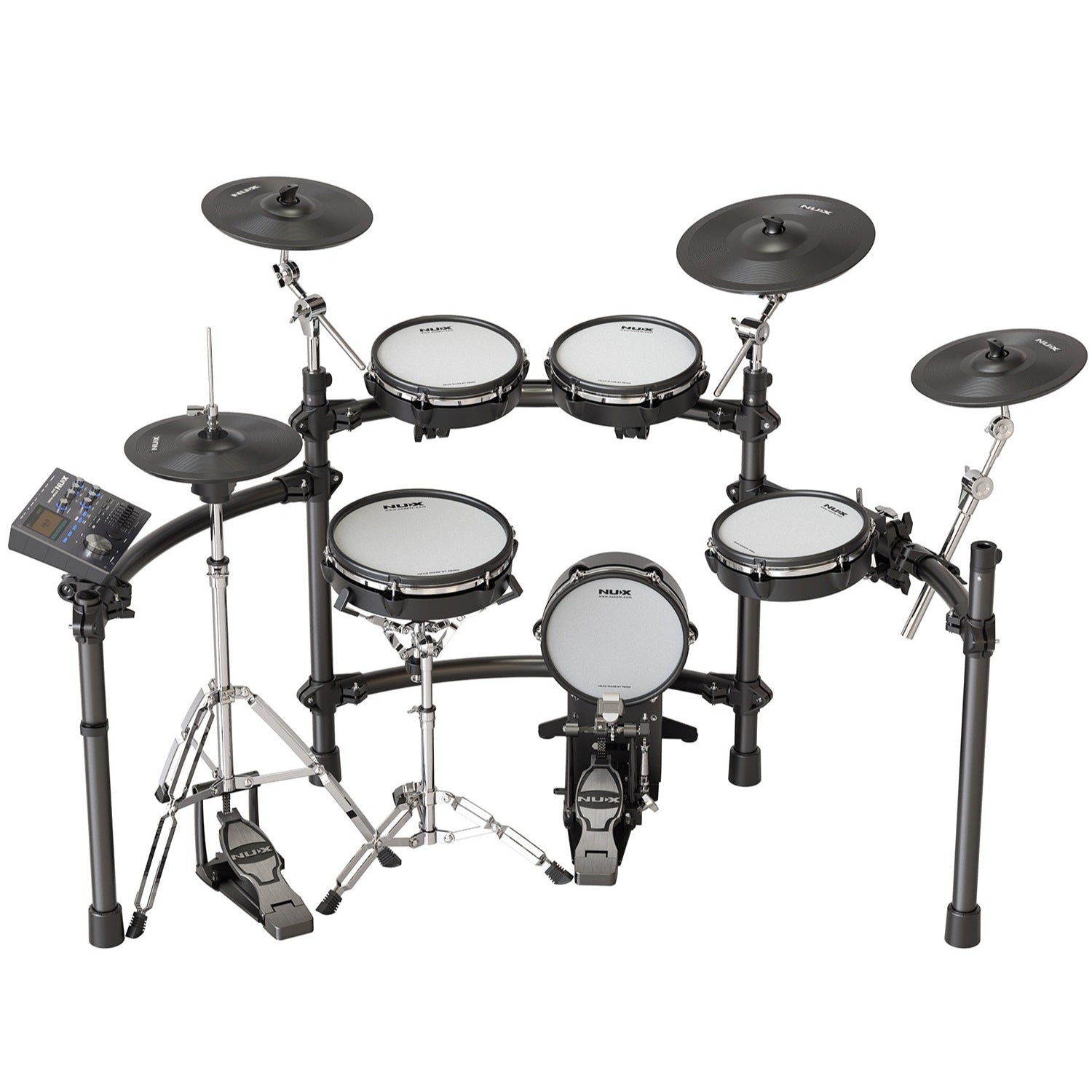

DM-8 is the flagship digital drum kit from NU-X, designed without compromise to provide the most responsive and accurate real-kit experience for the most demanding of drummers.

Each pad is fitted with industry standard Remo® mesh heads. A 14" snare with a 3-point trigger and separate rim sensor is supplied with a fully adjustable dual-braced tripod stand.

Three further pads serve as high, mid and floor toms, again with separate sensors for rim shots.

DM-8 also has a unique 10" mesh head bass drum pad with pedal and angled front brace for authentic kick resistance with maximum stability.

Cymbals start with the 12" hi-hat mounted to an articulated pedal stand with motion sensor for a genuine "stick feel" and true response to open, closed or half-closed pressure.

A pair of 12" crash cymbals each have bow and edge trigger zones, and the 14" ride cymbal adds a bell trigger zone.

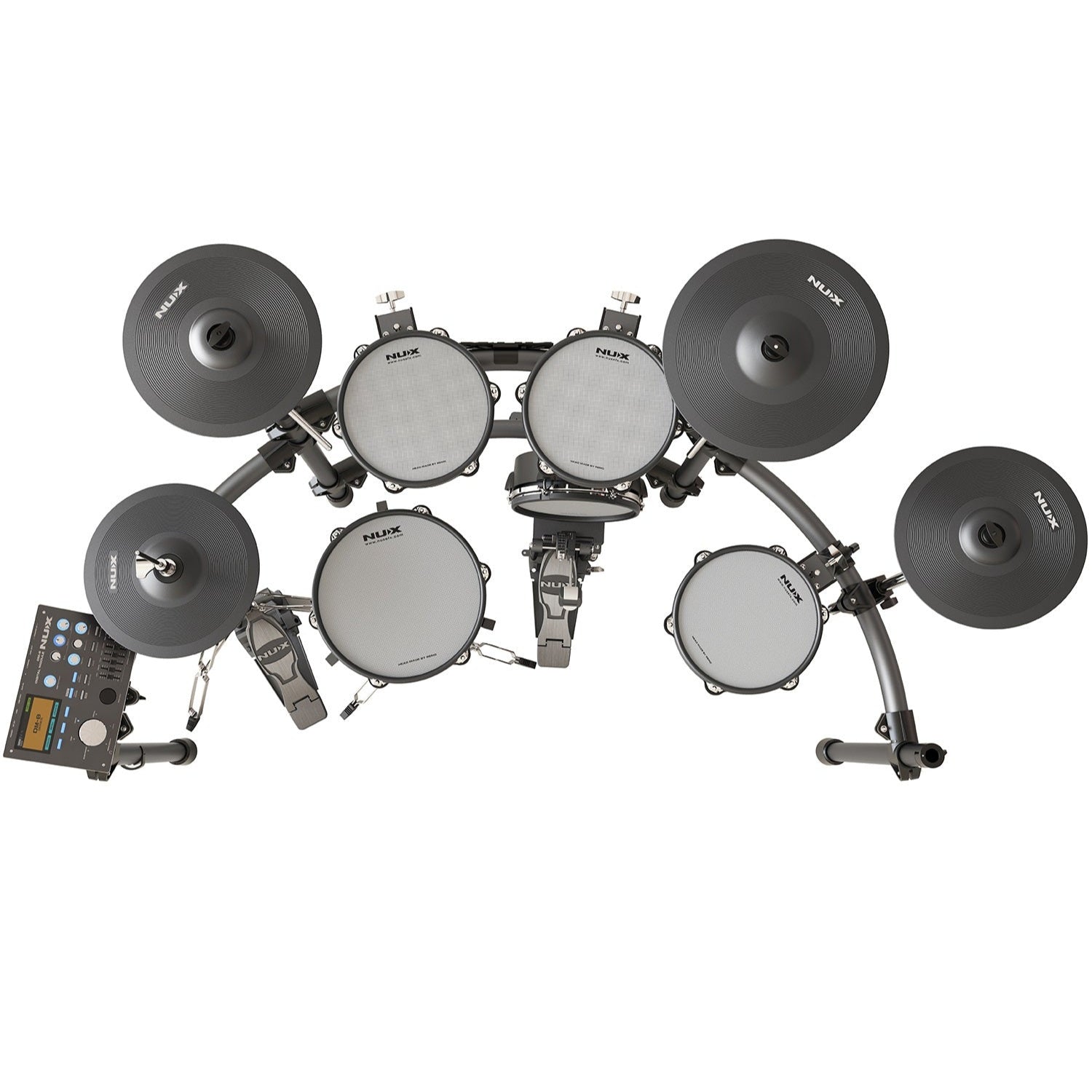

All except the snare and hi-hat are mounted to a stable curved rack stand with versatile height and tilt adjustable mounts.

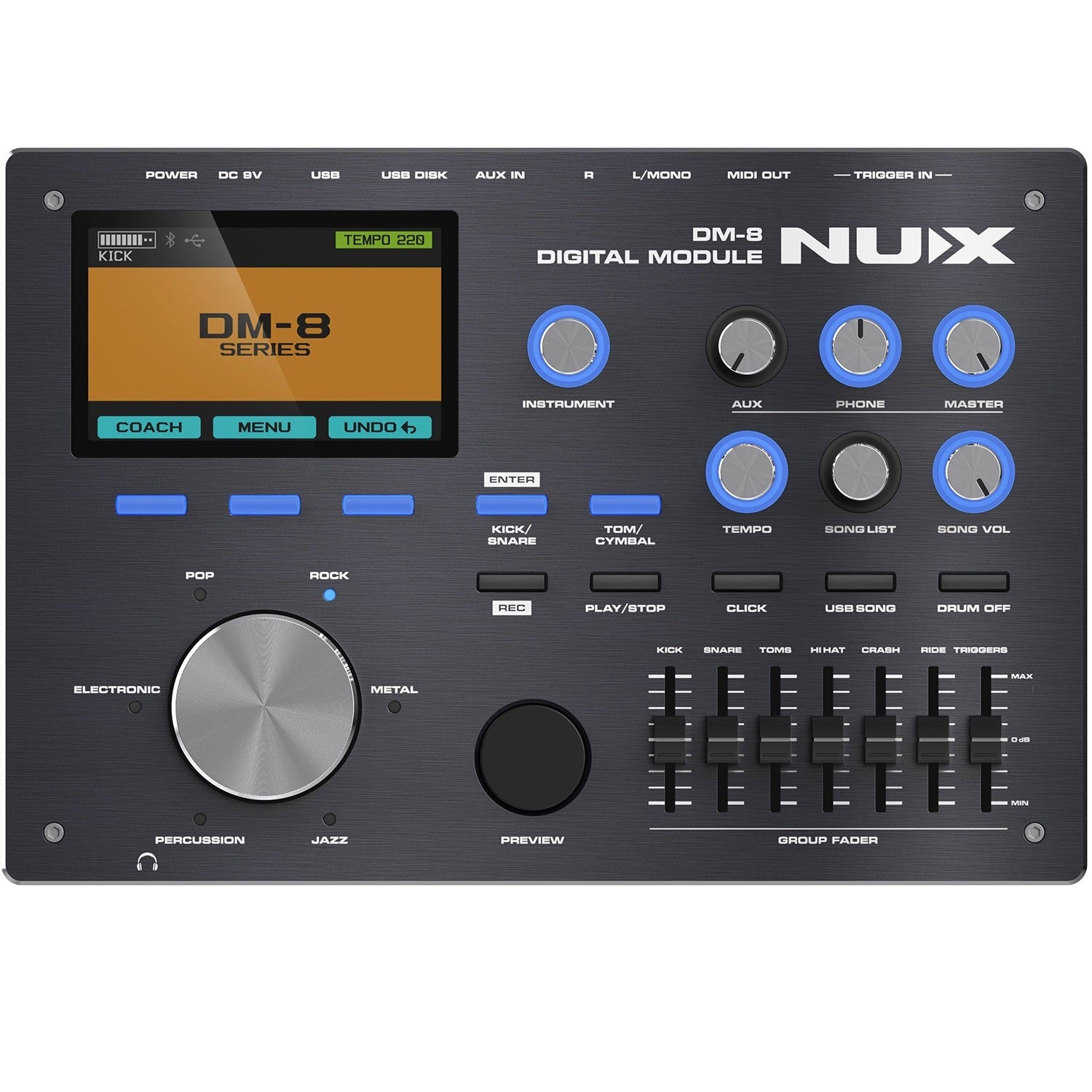

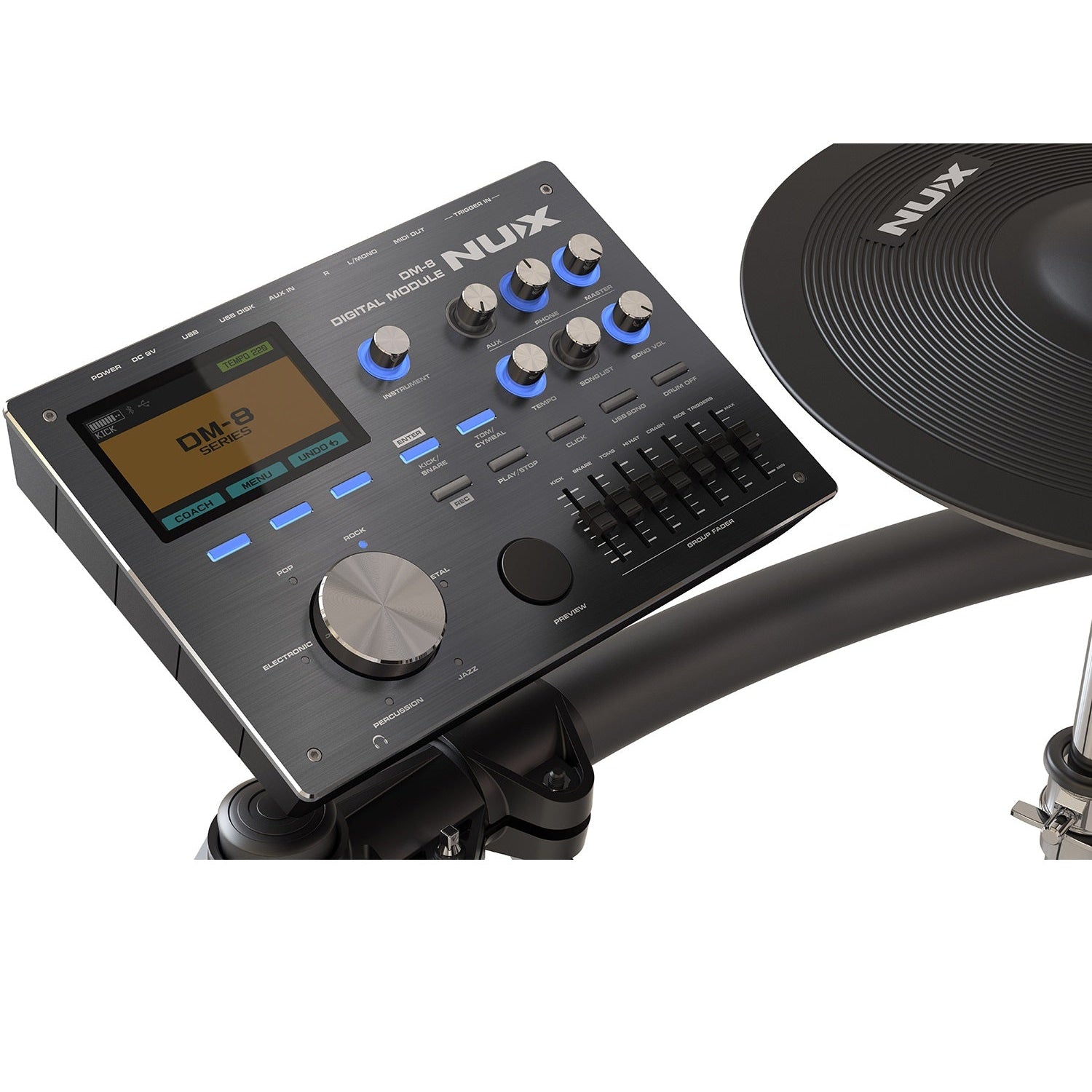

Deep editing of sounds, effects and settings on the DM-8 control module is quick and intuitive thanks to the multi-control surface and menu-driven colour TFT display.

Additional functions include a rhythm coach and jam-along tracks for practice, playback or recording WAV audio tracks to a USB flash drive or streaming audio via Bluetooth®.

A separate USB type B connection to PC or Mac computer enables direct digital recording and MIDI integration with a DAW software environment.

MIDI out connection enables triggering and/or control of external MIDI sound modules.

Connection for an auxiliary input is joined by stereo or mono output directly to a PA or backline amp and headphones output for monitoring.

DM-8 offers a near acoustic kit experience with professional features and additional functions that make this the only kit you may ever need.

• Remo® heads - tested to over 1 million strokes
• Multi-zone triggering for drum pads and cymbals
• 300 tone custom sound set
• Internal jam-along tracks
• Custom WAV tones loadable from USB flash drive
• Digital recording with up to 14 tracks simultaneously
• 5-pin DIN MIDI out
• Bluetooth connectivity
• Power supply: 9Vdc, 200mA (mains adaptor supplied)
• Inputs: Aux 3.5mm stereo jack, Bluetooth, ext. cymbal & tom trigger inputs

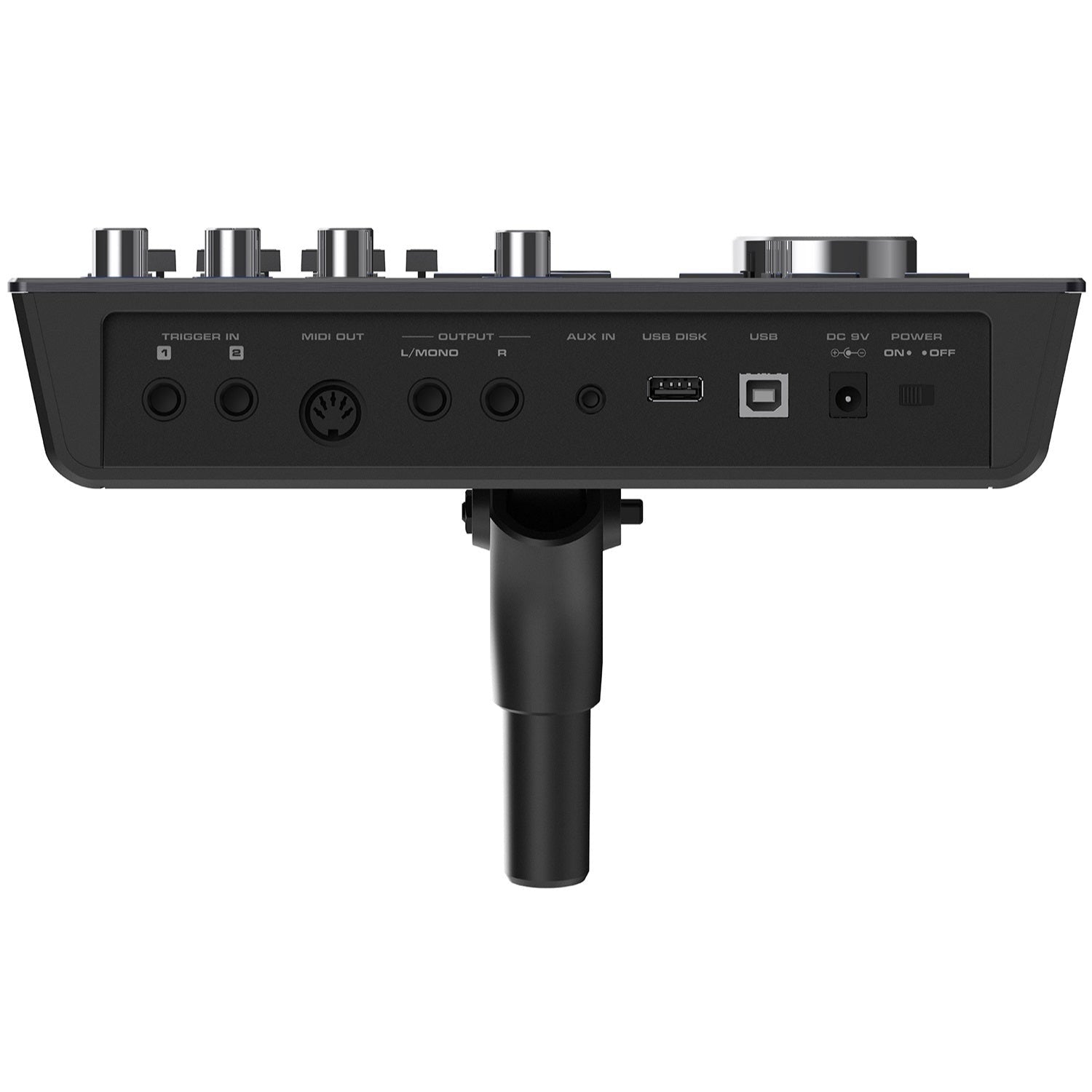

• Outputs: 2 x 6.3mm jack, 3.5mm phones, 3.5mm aux in, USB-A, USB-B, MIDI (5-pin DIN)
• Dimensions (assembled): 1500 x 1500 x 1400mm (adjustable)
• Weight: 43.75kg (full kit and stands)
