Nu-X MG-300 MKII Electric Guitar Multi-FX Pedal

Nu-X MG-300 MKII Electric Guitar Multi-FX Pedal

MG-300 mkII builds on the huge success of the original MG-300 compact multi-effects pedal, with a larger display and upgraded sections for Drive, Amp Simulation, I.R cabinet simulation, Modulation, Delays & Reverbs.

Audio modelling uses the new TSAC-HD algorithm, bringing pro-level amp emulations to this minimalist format.

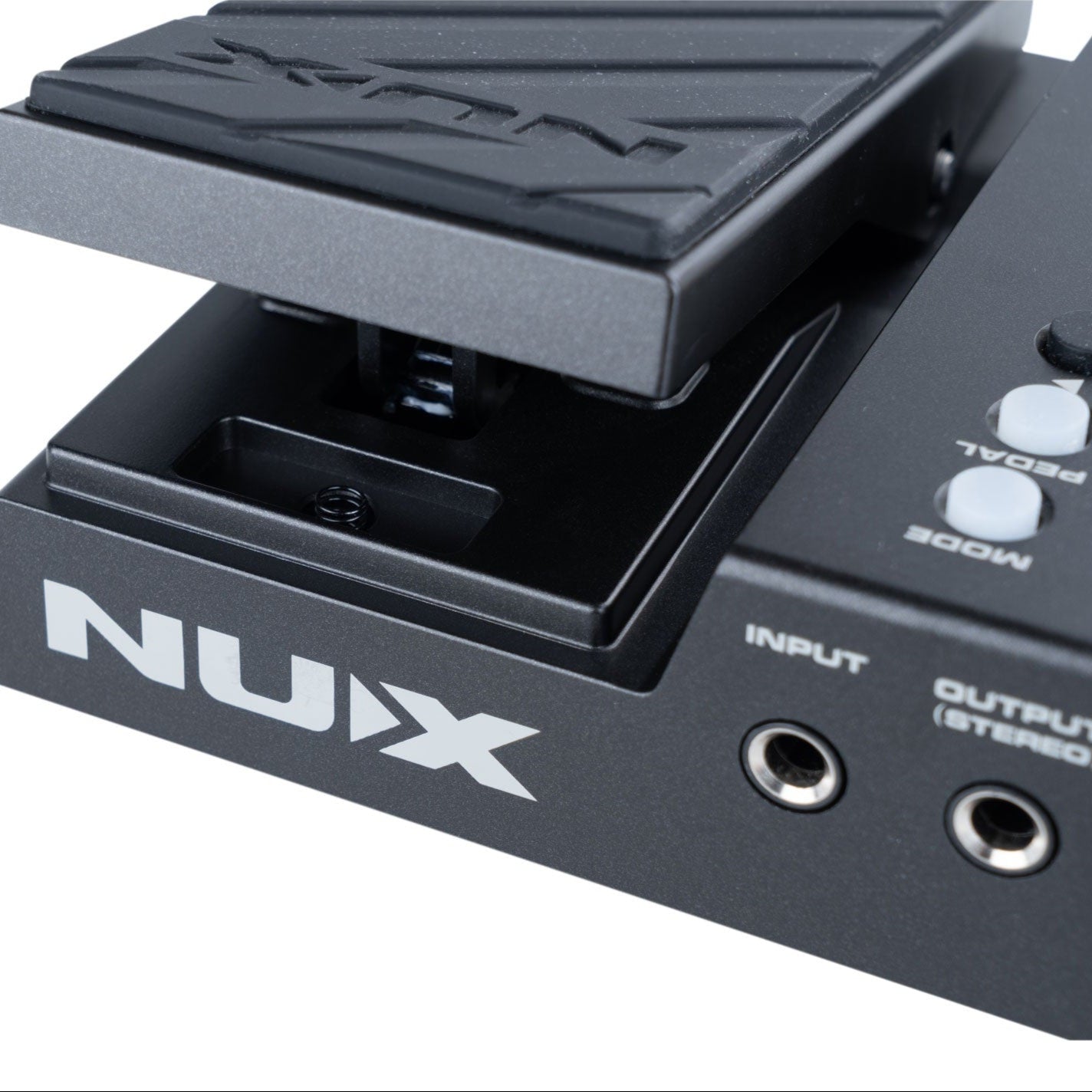

An expression pedal now has a physical toe switch and is self-calibrating, whilst the order of processing blocks are also now switchable, expanding the effects possibilities even further.

All settings can be edited onboard or via USB using the downloadable PC/Mac Quicktone software and then stored into one of 36 internal memory locations, with a new feature of 3 Pro Scenes within each preset.

For live or rehearsal backing, the built-in Jam function has a fully featured drum machine and phrase looper.

To integrate with a DAW studio suite, the USB-C connection also functions as a high quality audio interface, completing the studio-ready guitar rig.

The main output has options for guitar amplifiers, D.I. to mixer or headphones or with loopback for interactive online streaming.

Keeping all the elements that made MG-300 so popular, the mkII includes new features and high-end processing that are now accessible in a compact all-in-one unit.

Specification:

• TSAC-HD accurate amp modelling
• Switchable order for effect blocks
• Fully-featured drum machine and looper
• I.R. cabinet simulation (importable)
• USB-C audio recording interface
• Power supply 9Vdc, 260mA pin-negative (adaptor included)
• Sampling Frequency 48kHz
• A/D Converter 32-bit
• Frequency response 20Hz - 20kHz (±1dB)
• Dynamic range 106dB

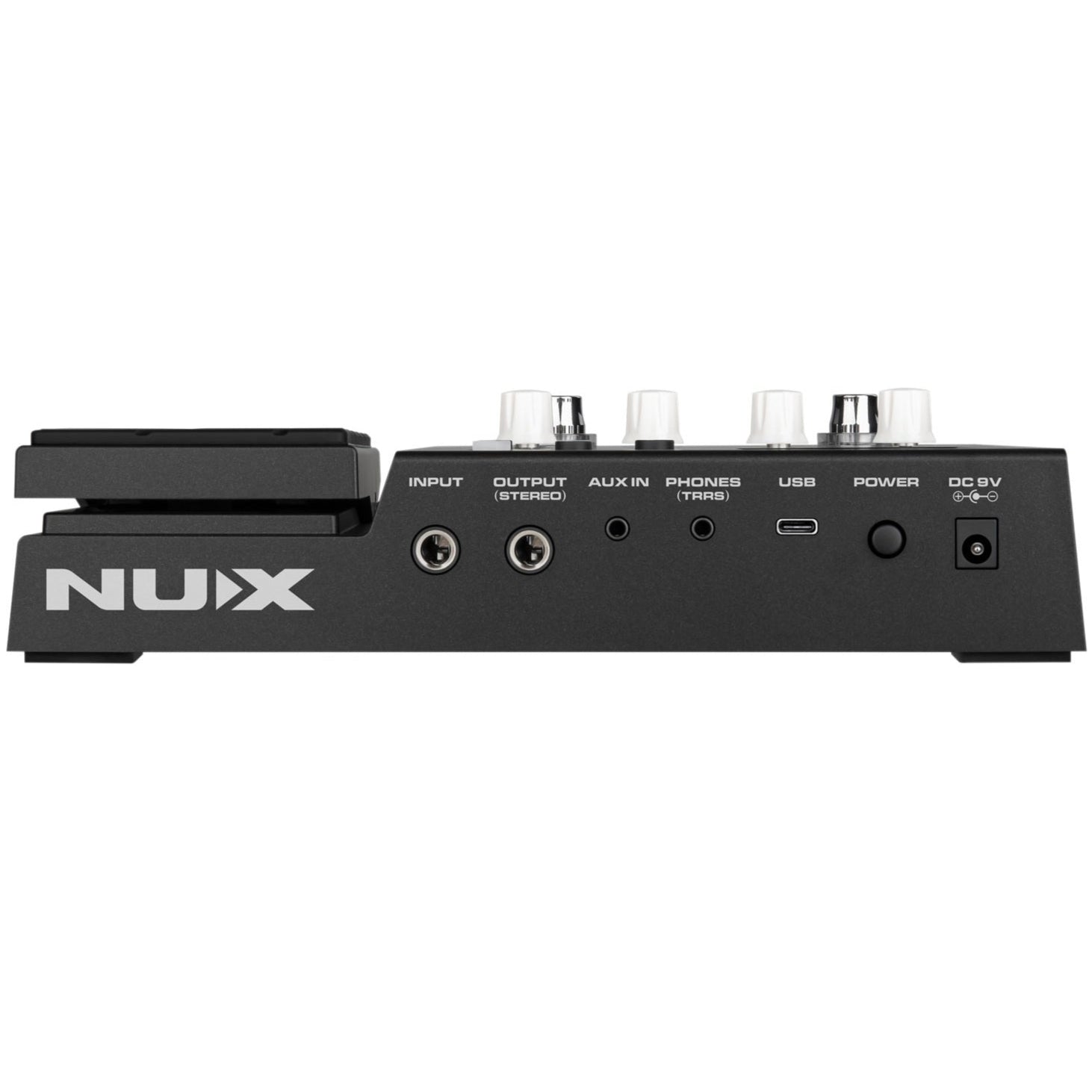

• Inputs 6.3mm jack (guitar), 3.5mm stereo (Aux)
• Input level +8dBu
• Outputs 6.3mm jack to mixer/amp or 3.5mm TRRS phones
• Output level +8dBu
• Dimensions 241 x 160 x 49mm
• Weight 760g
