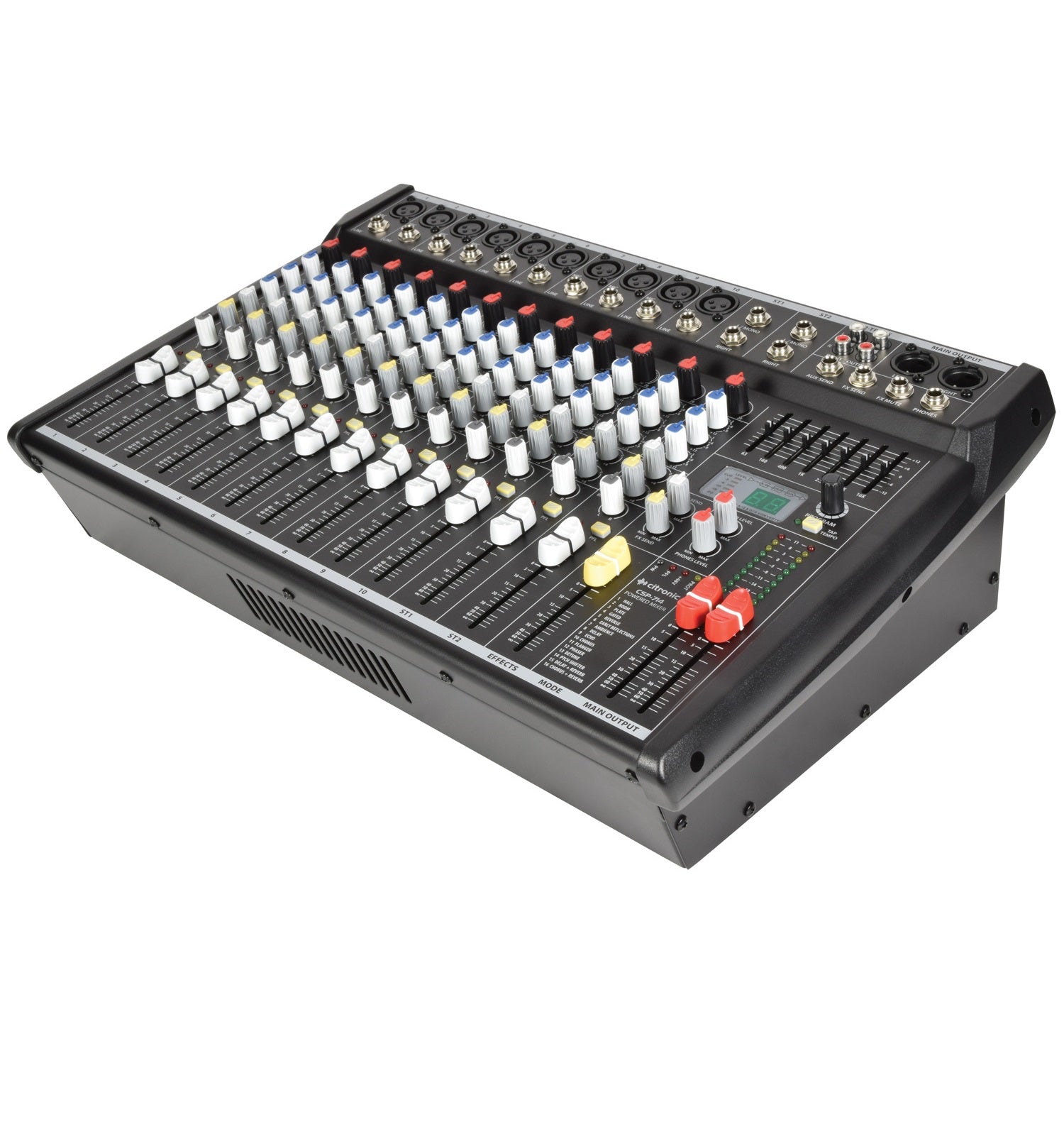

Citronic CSP-714 Compact Powered Mixer with DSP 14 input, 2 x 350W Amplifier

Citronic CSP-714 Compact Powered Mixer with DSP, 14 input, 2 x 350W Amplifier

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send.

A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control.

The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

• 24-bit 16 program DSP effects
• 48V phantom power for XLR inputs
• 3-band EQ per channel
• 7-band global graphic EQ
• Internal stereo power amplifier
• Balanced main outputs
• Weight: 10.40kg

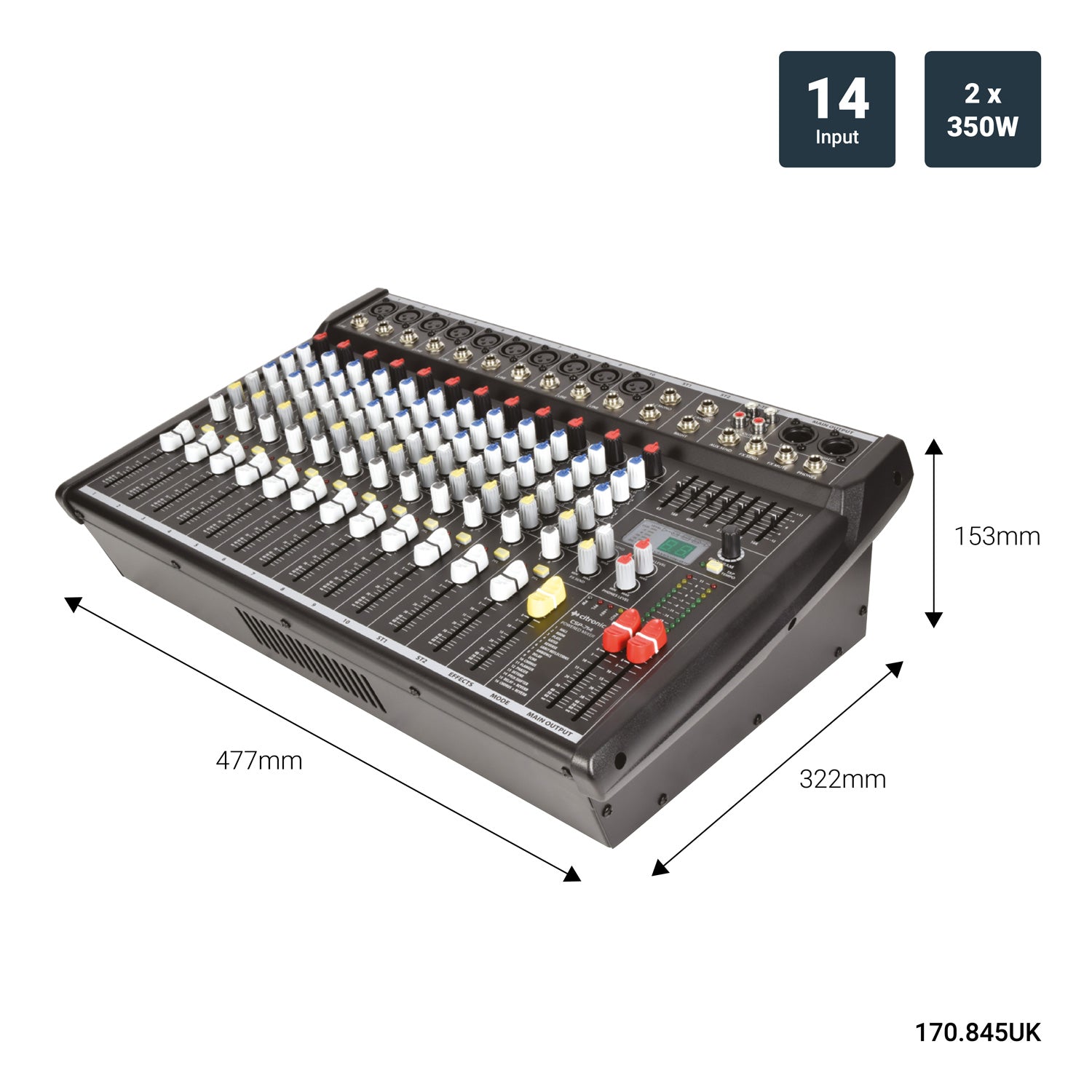

• Dimensions: 477 x 322 x 153mm
• Inputs: Mic/Line10 x balanced XLRF/TRS jack
• Output power: 8 Ohms 2 x 230Wrms
• Output power: @ 4 Ohms 2 x 350Wrms
• Fuse: T15A (5 x 20mm, 250V)
• Power consumption: 1000W
• Power supply: 230Vac 50Hz (IEC)
• Speaker: outputs L+R SPK connectors
• Effects: 16 program DSP (24-bit sigma-delta, 40khz)
• Phantom power: +48V (XLR inputs)
• Frequency response: 20Hz-30kHz (0.5dB)
• Input level: +24dBu
• Output level: line +26dBu
• CMRR>74dB (mic 1kHz)
• THD +N<0.01% (channel to main out)
• Crosstalk>85dB (fader mute), >82dB (channel)
• Noise rms: 22Hz-22kHz-122dBu (EIN), -82dBu (mix)
• EQ: high12kHz ±15dB shelving
• EQ: mid2.5kHz ±15dB band pass
• EQ: low80Hz ±15dB shelving
• Input impedance: mic (balanced)2k Ohms
• Input impedance: line (balanced)10k Ohms
• Sensitivity: mic-60 to +14dBu
• Sensitivity: line-40 to +14dBu
• 2-track: 2 x RCA in & out (-2dBu)
• Output impedance: <75 Ohms
• Headphone output: 6.3mm jack, 30-600 Ohms
